Description

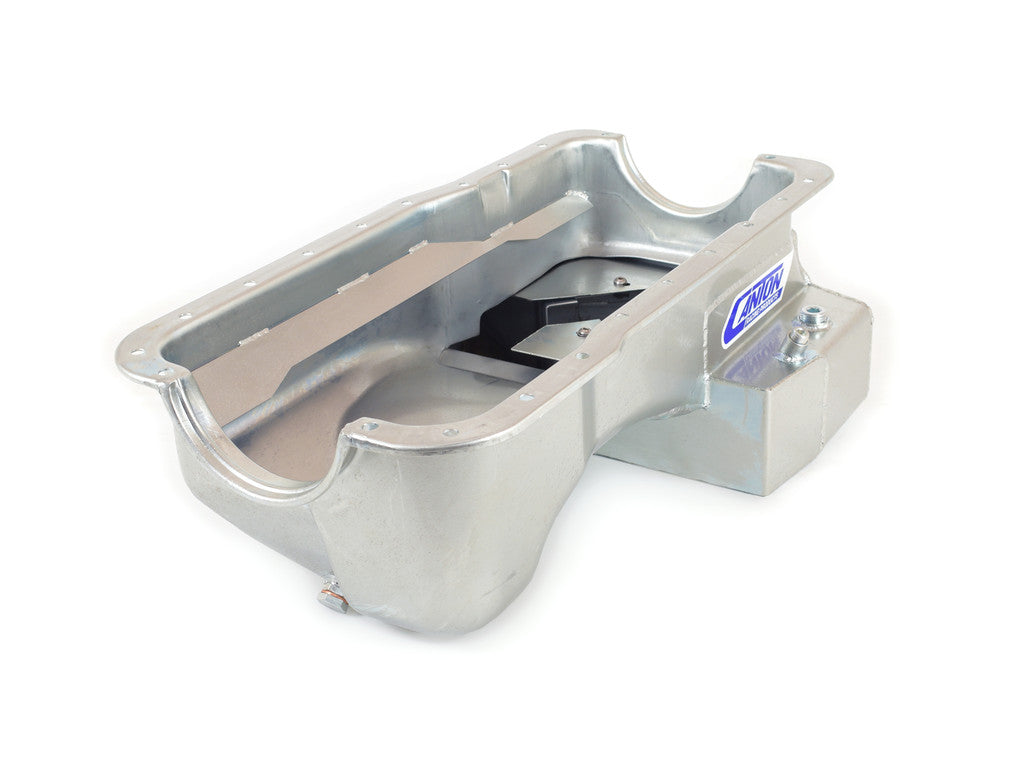

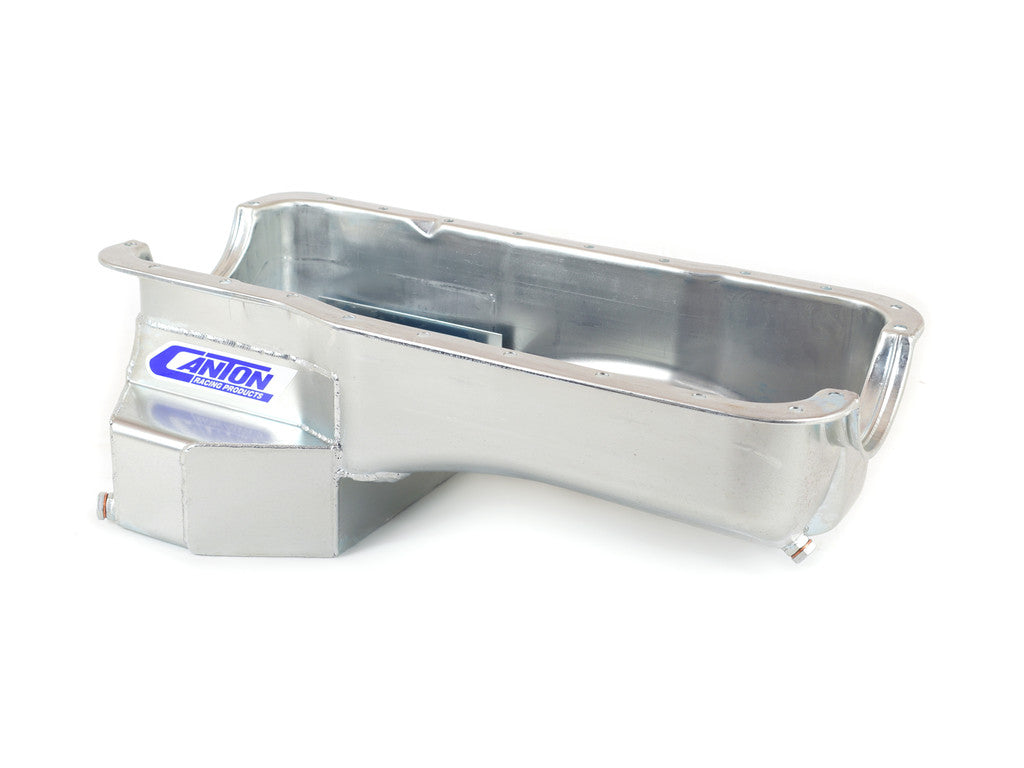

This "T" style rear sump oil pan is for Ford 289-302 blocks in Fox Body Mustangs. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7 quart system capacity. Some long tube headers require modification. This pan requires our #15-645 pickup for Melling M68/M68HV/M10688 oil pumps. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.
Oil Pan Features
* 7 qt System Capacity
* Retains Stock Depth

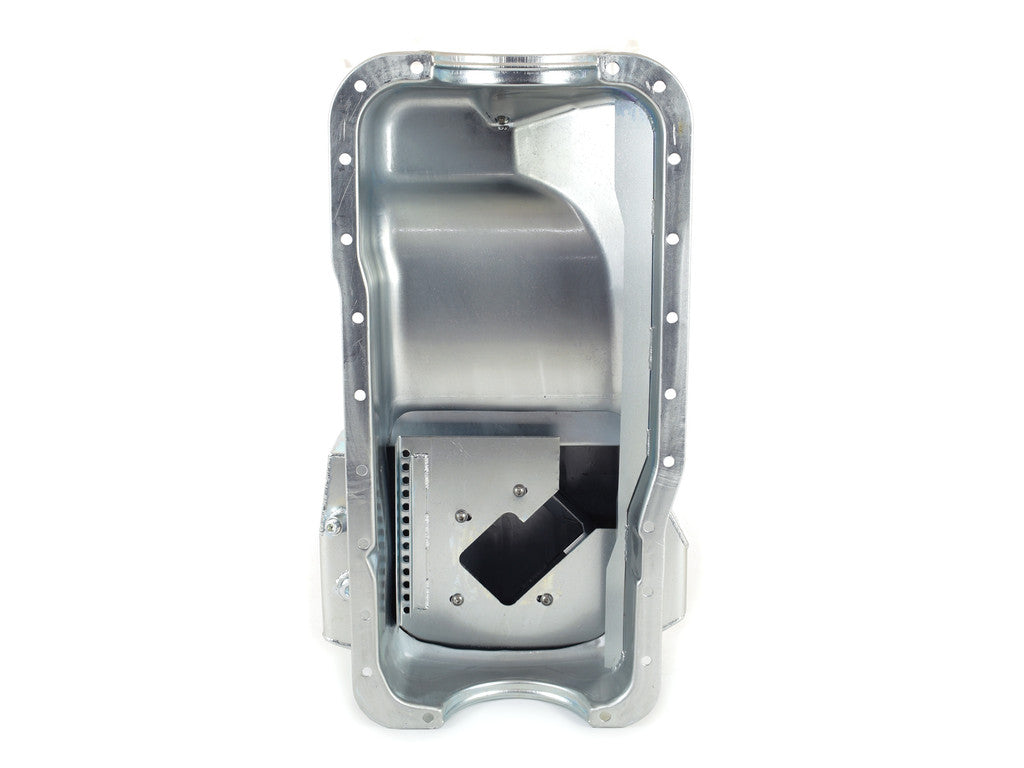

* Diamond Shape Road Race Baffle Assembly With Four Trap Doors
* Crank Scraper
* Removable Windage/Anti-Slosh Baffle
* 1/2" NPT Temperature Bung
* Provision For Our Pan Mounted Dipstick
* Magnetic Drain Plug
- Condition:
- New
- Availability:
- 2-7 Business Day Via UPS Ground (Orders placed after 2:30pm EST will be processed the next business day)
- Capacity:
- 7 Quart System Capacity
- Application Type:
- Road Racing
- Sump Style:
- T-Sump
- Material:
- 16 Gauge Steel
- Engine Type:
- Ford 289-302
- Stroke:
- 3.4
FEATURES
- Canton 15-644 Oil Pan Road Race Rear T-Sump - 7 qt - 7-1/2 in Deep - Steel
