Description

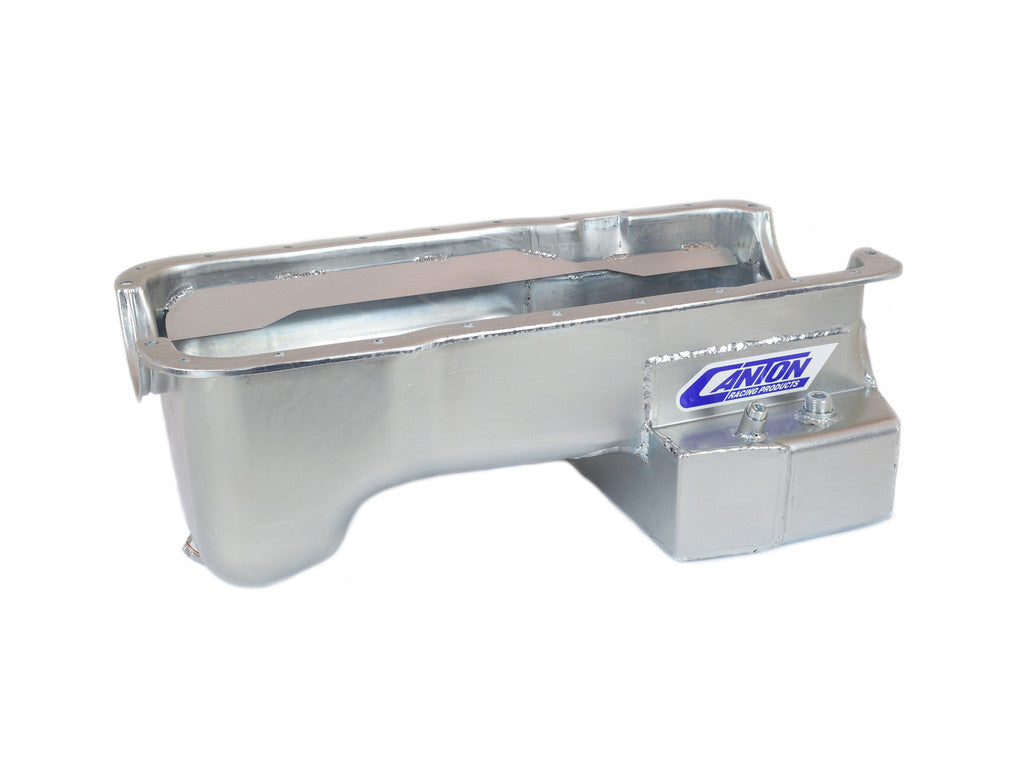

This "T" style rear sump oil pan is for Ford 351 Windsor blocks in Fox Body Mustangs. It has a 7-1/2" deep by 8" long by 13-1/2" wide sump and a 7 quart system capacity. Some long tube headers require modification. This pan requires our 15-691 pickup for Melling oil pumps M83/M83HV/M10833. Note: Modification needed for manual transmission 94-95 Mustangs for clutch cable clearance.
Oil Pan Features
* 7 qt System Capacity
* Retains Stock Depth
* Crank Scraper
* Slosh Baffle
* 1/2" NPT Temperature Bung
* Provision For Our Pan Mounted Dipstick
* Magnetic Drain Plug
- Condition:
- New
- Availability:
- 2-7 Business Day Via UPS Ground (Orders placed after 2:30pm EST will be processed the next business day)
- Capacity:
- 7 Quart System Capacity
- Application Type:
- Street/Strip
- Sump Style:
- T-Sump
- Material:
- 16 Gauge Steel
- Engine Type:
- Ford 351W
- Stroke:
- 4.0
FEATURES
- 7 qt System Capacity
- Retains Stock Depth, Crank Scraper, Slosh Baffle
- 1/2" NPT Temperature Bung
- Provision For Our Pan Mounted Dipstick, Magnetic Drain Plug
- Recommended Accessories: Canton Part Numbers 15-691, 20-953, 20-850, 20-854, 88-652
- Fit type: Vehicle Specific
